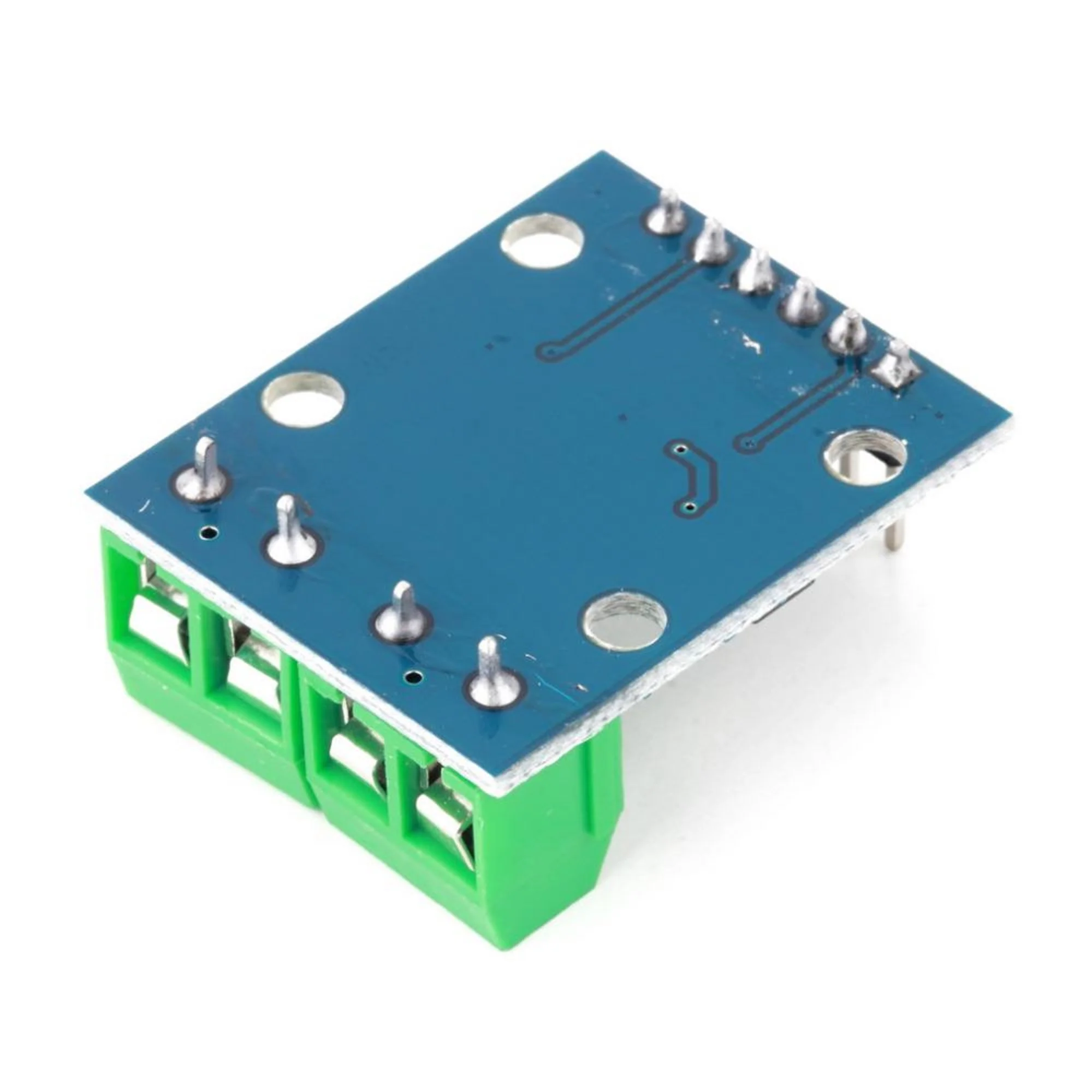

L9110S DC Stepper Motor Driver Board

L9110S DC Stepper Motor Driver Board
Onboard two the L9110S motor control chip
The module can simultaneously drive two DC motors or a 4-wire 2-phase stepper motor
The module input voltage :2.5-12V
800mA continuous current output capability per channel

Specification:

• Low static work current
• Power supply voltage: DC2.5-12V
• Each channel has 800mA continuous current output
• Low saturation pressure drop
• TTL/CMOS output level compatible, can be connected directly to the CPU
• Output built-in clamping diode, apply to the perceptual load
• Control and drive integrate in IC
• Have pin high pressure protection function
• Working temperature: 0-80 °
• Size: 29.2 (mm) x 23 (mm)

Package Includes:
1 x L9110S DC Stepper Motor Driver Board
