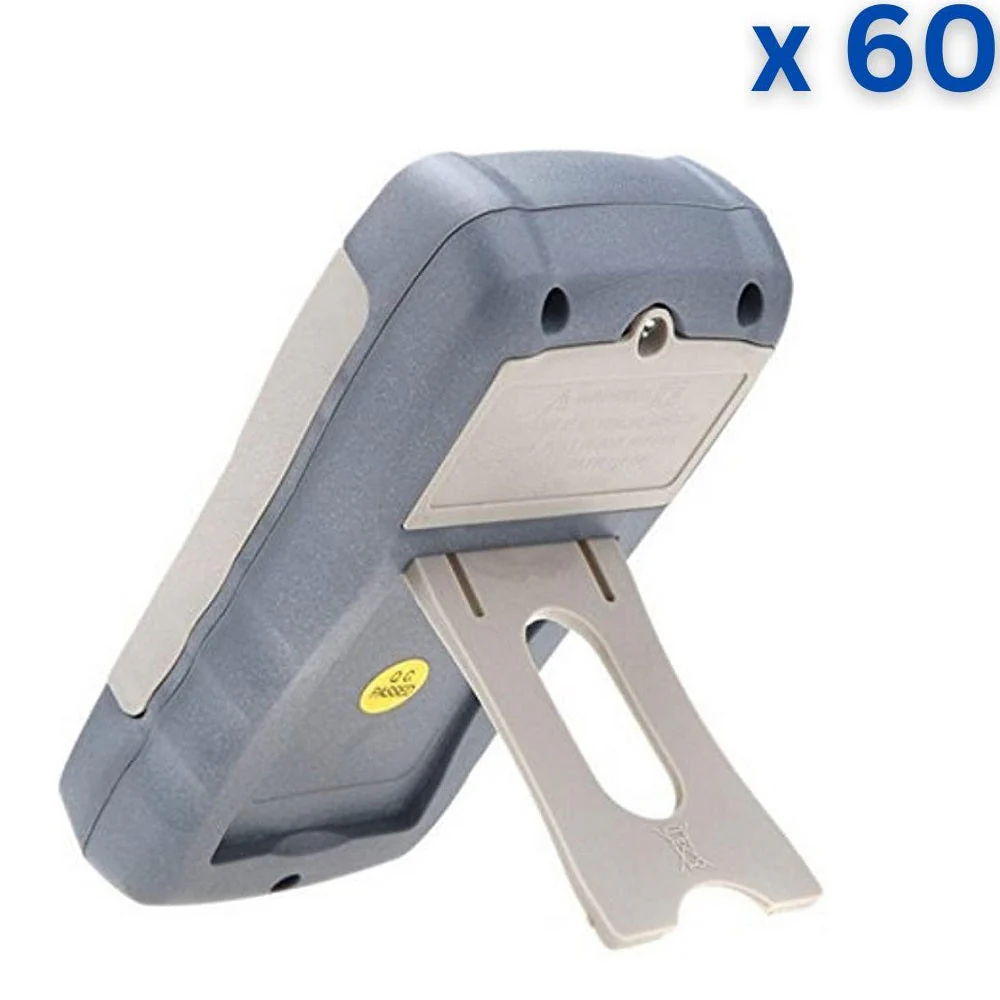

MetroQ MTQ111 Digital Multimeter

The MTQ111 digital multimeter is modernized design with large screen, simple to operate and easy to read even in the dark. This meter can provide various measurements for AC/DC voltage, AC current, resistance, diode, continuity, and hFE test.

Technical Specification:

• Model No : MTQ-111
• Type : Digital
• Display : LCD 3½ digits 6” high
• Counts : 1999
• Voltage Range (AC) : 0V to 500 V
• Voltage Range (DC) : 0V -500 V
• DC Current Range : 0A -10 A
• Resistance Range : 0? - 2000K ?
• Size : 135x67x33mm
• Weight : 145 g

Features:

• Polarity : Automatic Negative Polarity
• Measuring Method :  Dual-Slop Integrating A/D Converter System
• Data Hold : Freeze the Displayed Data
• Sampling Rate : 3 Times/second
• Auto Power OFF
• Warning Function
• Unit Signal Displaying
• Relative Value Measuring
• Auto / Manual Range Switch

Pin Description:

Applications:

• Automotive
• Electronics
• DIY Projects
• Laboratories

Package Includes:

• MTQ-111 Digital Multimeter
• Set of test leads
• User Manual
